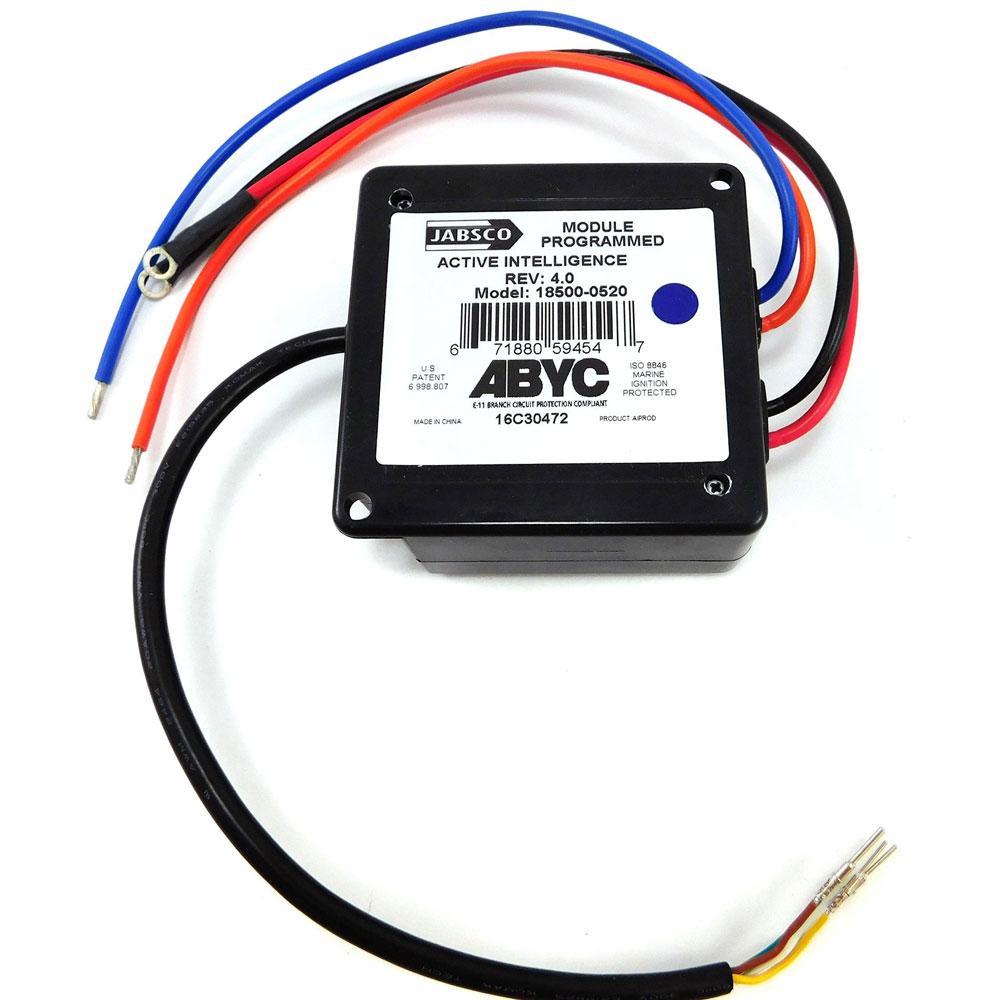

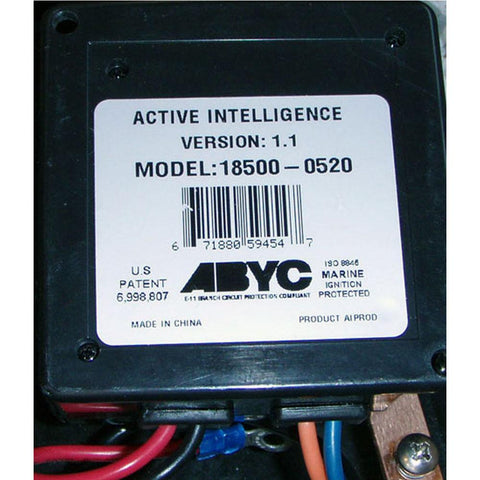

BALLAST PUMP TIMER FOR MASTERCRAFT MADE BY JABSCO!
Pressure sensitive A.I.
20 Min. 07-08 Timer Module
Check out this YouTube Video of how it works by clicking HERE
Increase the fill time of the factory Jabsco Ballast Puppy pumps many factory installed ballast systems to a maximum of 20 minutes for filling additional ballast.
If you've added additional ballast to your Mastercraft boat only to find that the factory pumps don't run long enough to completely fill the new bags, these 20 minute timer modules are the solution.
This timer module can also be used to control run-time and add AI functionality to ANY Jabsco Ballast Puppy wakeboard ballast pump. Ideal for aftermarket ballast system installations where automated control of the pump is desired.
Manufactured by Jabsco, the same company that makes the factory ballast pumps and timers, the 20 minute version is the same OEM part installed in the boat from the factory, but allows the pumps to run for up to 20 minutes (set during configuration), as opposed to the six minute units that came with your boat.
The Jabsco Ballast Timer Module is the best way to stop your Jabsco Ballast Puppy pump impellers from burning up if you have your system draining through the bottom thru-hull where you cannot determine how much water is left in the system. Keep your system functioning properly the entire summer with this simple add on.

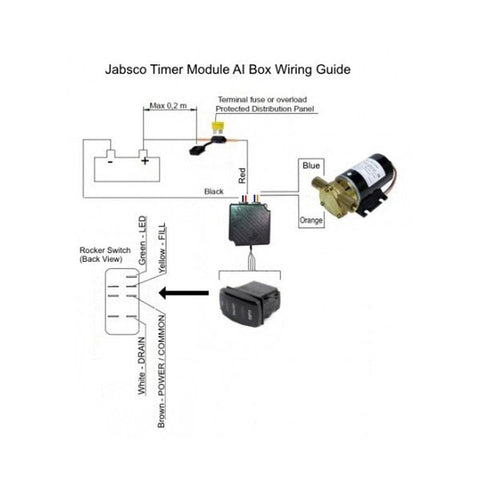

Installation does involve some basic wiring, but is as simple as removing the timers that came with the boat and installing these upgraded units in their place. Once installed, everything looks completely factory, because it is.
Download Jabsco Ballast Timer Instructions HERE
This is without a doubt the easiest way to fix the issue of pumps shutting off before your auxiliary ballast system is completely full. End the headache of trying to full fill your ballast, and make full use of the additional weight you installed.
MasterCraft Ballast Control Box Location:
- 2007 - 2008 MasterCraft X-Star: Port Side/Rear Compartment/Front Wall
- 2007 - 2008 MasterCraft X-2: Port Side In front Of Rear Storage Compartment
- 2007 - 2008 MasterCraft X-1: Behind the drivers side throttle panel.
REPLACES Mastercraft Part # 50043003.
One Timer Required Per Pump!
A new Timer Module will be required for each pump that is being controlled in the system, so make sure you purchase the correct quantity of modules for your application.
