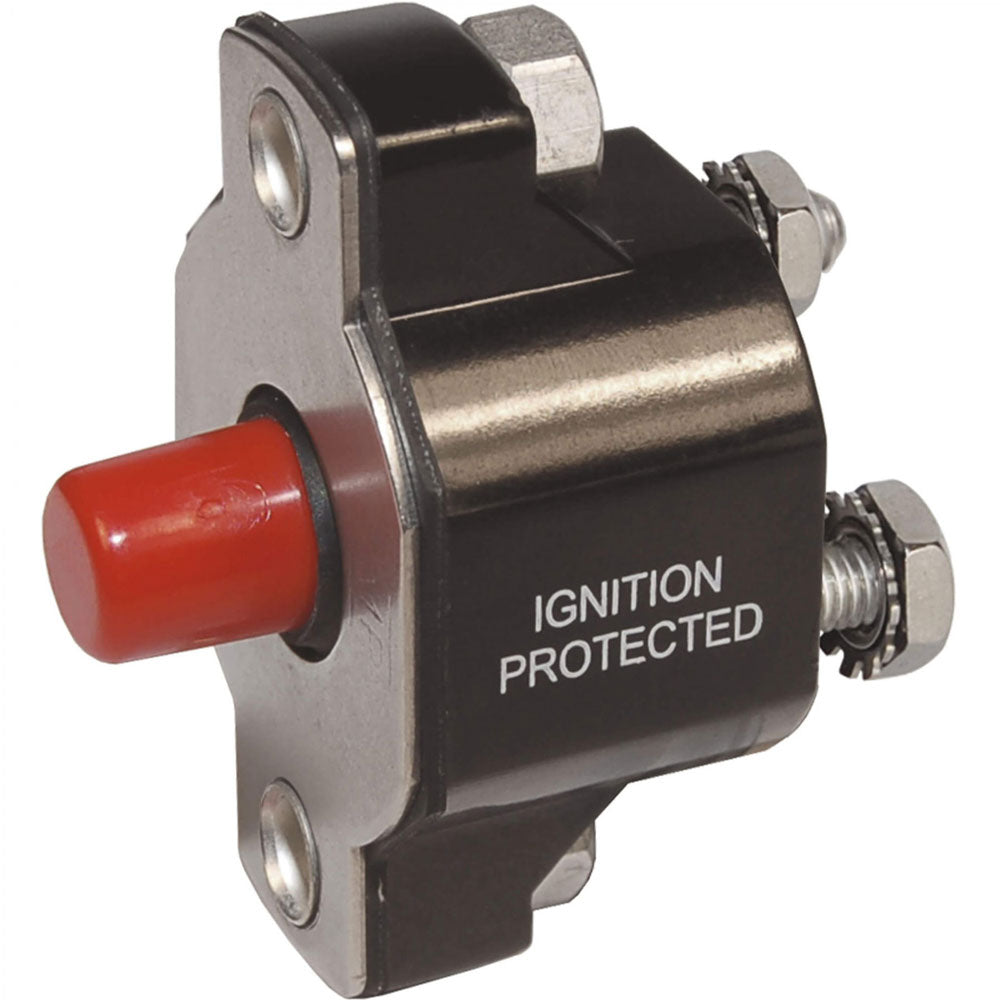

15 Amp Medium Duty Push Button Circuit Breaker
Note: Used on the PCM GT40 Engines along with the 60 Amp & the 15 Amp.
Reset-only 15A circuit breaker is ideal for many DC & AC circuit protection applications that do not require switching.
- Blue Sea push button circuit breaker
- Replaces PCM R153014
- Reset-only circuit breaker with push-to-reset operation
- (2) #10-32 stainless steel terminal studs
- Captive star lockwashers meet requirements for anti-rotation and help eliminate the loss of small attaching hardware
- 15 amp circuit breaker can be used for main, branch, or 24-hour circuit protection
- Trip Free feature cannot be held ON during fault current condition
- Compact design
- Thermal trip type
- 5000A interrupt capacity @ 32 volts DC
- 3000A interrupt capacity @ 120 volts AC
- 32 volts DC maximum operating voltage
- 120 volts AC maximum operating voltage
- #8-32 mounting screw thread size
- 1.575 in. mounting screw bolt hole centers
- Meets SAE J1428, SAE J553, UL 1077 regulatory specifications
- Meets UL 1500 external ignition protection requirements
